Documentation for Medi

ATTENTION: This documentation is about the new version of Medi. If you are using the legacy version visit its documentation page here.

Server Requirements

If you already have WordPress installed, it means that you meet the minimum server requirements and you can perfectly install this theme without any issues. To get the most out of your website though, you should get in touch with your web host and ask them if they meet the following criteria:

  • PHP version 7.4 or greater.
  • MySQL version 5.6 or greater OR MariaDB version 10.1 or greater.
  • HTTPS support.

Prerequisites

Ignition Framework

This theme requires our free Ignition framework plugin to be installed. Simply visit the Downloads area, download the Ignition Framework plugin, upload it through your Dashboard > Plugins > Add new and Activate it.

It really doesn’t matter if you install the theme or the plugin first. Just make sure to install both in order for things to function as intended.

Read this for more information about the plugin installation procedure.

Theme installation

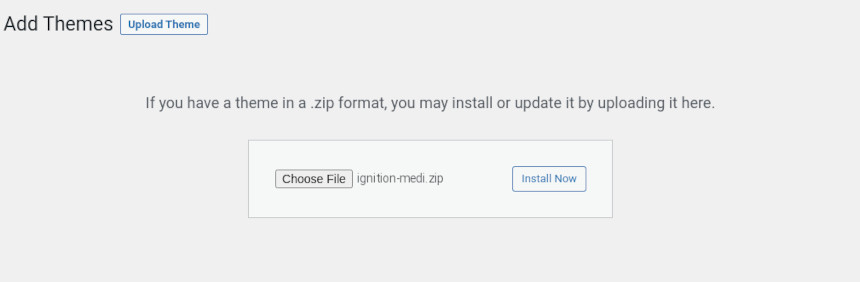

Installing the theme is a very simple process. Go to your dashboard under Appearance > Themes > Add new, click Upload Theme and upload the zip file. Once uploaded click Install Now and then the Activate Theme link. Here is a detailed overview on how to download and install the theme.

Once the theme is installed and activated you will be forwarded to the theme’s onboarding page.

Here you will be prompted to install and activate the Ignition Framework plugin if you haven’t done so already. Here you can also install our free custom blocks plugin, GutenBee. Through the onboarding page you have access to many useful links, such as the theme’s documentation, our knowledge base articles and direct links to our support hub.

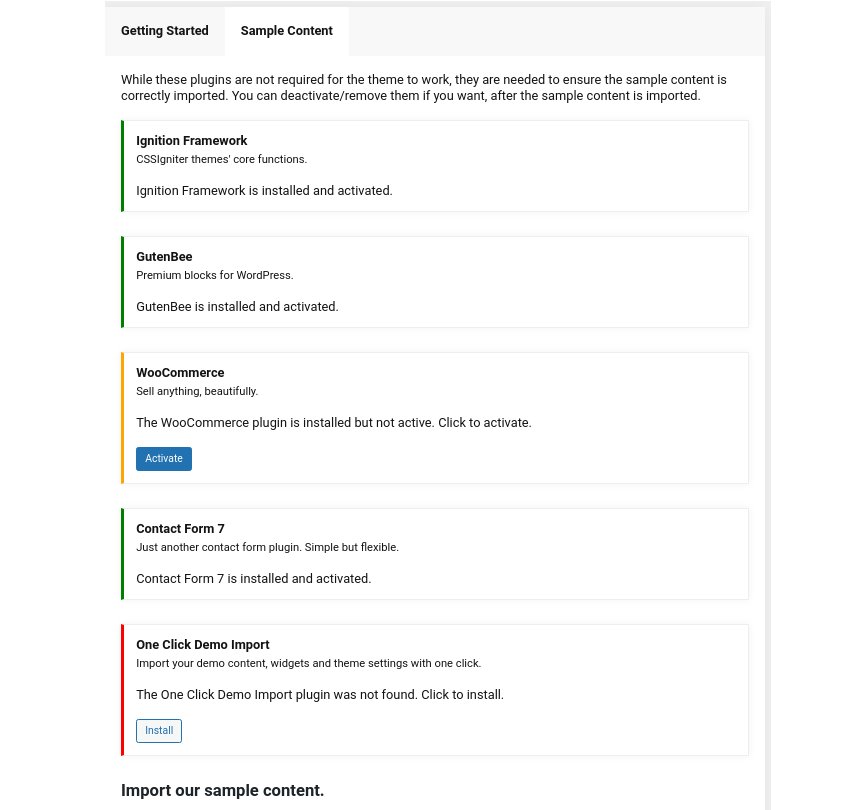

In the Sample Content tab of the onboarding page you can install and activate all the plugins required to import the sample content and proceed with its installation. More info on that on the next section.

NOTE: The only plugin required for the theme to work properly is the Ignition Framework plugin, all other plugins are entirely optional if you don’t need their functionality or are not planning on importing the sample content. You can safely skip installing and activating them if you are sure you don’t need them.

How to import the sample content

If you like what you see in our demo website you can simply import the sample content. This means that a close approximation of our demo website will be imported in your WordPress installation. Now all you have to do is simply replace the content of these pages with yours.

A generic video guide on how to import the sample content can be found here.

The procedure:

  • In your WordPress dashboard visit Appearance > Theme Options > Sample Content.
  • Click Install and then Activate for each of the required plugins.
  • Click the Get Started button and in the next screen, move over the screenshot of the builder/variation of your preference and click the Import Demo button.
NOTE: Due to the nature of the import mechanism some links may link back to our demo website. If you are not sure how to update / change these links simply get in touch and we’ll help you out.

Image sizes

Web page loading times are greatly affected by the size of your images. For best results make sure to use images with the recommended dimensions as described below:

  • Main post thumbnail: 870x580px
  • Item: 615x410px
  • Large Item: 1170x780px
  • Article Media 510x510px
  • Mini-cart items 160x160px
NOTE: If for any reason you want to change the dimensions of any of the predefined image sizes you have to use a plugin.  This guide describes the process of modifying image sizes.
NOTE: All image sizes are the minimum recommended, adding larger image sizes will result in cropping them to fit these sizes

Setting up site-wide sections

It’s considered a good practice to set up the areas of your website that you won’t be editing a lot in the future, like the general site layout, the header, footer and some secondary functionality.

General Site Options

You can change your general site options under Appearance > Customize > Site Options. Under the Layout section you can control your site’s, blog’s and single blog post’s layout, as well as the site width and content/sidebar column ratio. The layout can then be overridden in each post/page individually. Under the Colors tab you can select the basic color palette for your installation and add a background image. Finally under Typography you can select the ideal font pairing from a full list of Google Fonts and customize font properties for key elements on desktop and mobile devices alike. You also have the option to disable Google Fonts altogether.

The header on the theme consists of three key elements:

1. Top Bar
2. Logo
3. Main Menu

Top Bar

To edit the top bar go to Customize > Top Bar. Here you can toggle the top bar entirely and fill the 3 content areas with simple text, plain HTML, or shortcodes. Refer to the shortcodes section below for information regarding the shortcodes.

Logo

The recommended maximum width of your logo is 200px while you can use any height you want. To upload your logo go to Customize > Site Identity. You can upload two logos. The normal and the alternative one. The alternative logo can be used if you want a different logo to appear when the header layout is set to Transparent under Customize > Header > Layout.

This article offers more information regarding the header and its options.

Main Menu

If you are not familiar with WordPress menus here is a detailed guide.

Navigate to Customize > Menus. Enter a menu name (It can be anything you like) and click on the Create Menu button. In the next page click the Add Items button and start adding items to the menu. Now all you have to do is assign this menu to a location through the Menu Locations section, check the Main menu location and you are done. Your navigation menu should be now visible on your website.

Create a menu button

You can create a special button-like menu item by setting a certain class for to it. The class name is nav-button and you can set it under Appearance > Menus for the item you want. First enable this section from Screen Options.

This is a predefined class you can use for your menu items

The page title section

This section allows you to create an area just below the menu which can display the page’s title & subtitle along with a background image or color.

The page title section can be modified under Customize > Page title. You can choose to disable the page title with background section entirely, change its height, alignment, content and toggle the site’s breadcrumbs. Under the Colors section you can set a background color, a background image, an overlay color and also set the primary and the secondary text colors.

In some cases, like in our demo website, you might want to have different background images on different posts, pages and custom post types.

To achieve that create or edit a page. On the right sidebar locate the Page title image field. Upload a new image and preview this page. As you can see we have successfully overridden the image set in the Customizer settings.

NOTE: The purpose of the Transparent header option is to have your main header components (Top bar, Logo & Main Menu) on top of a background image or background color which means that you have to set on in the Customize > Page title > Color section.

In our Knowledge Base you can find more info about the page title section, the breadcrumbs and the page template overrides.

The footer area is a widgetized area that can be populated with widgets through Customize > Widgets. You can also remove the credits at the very bottom of this area by visiting Customize > Footer > Credits content section. You can also adjust the colors by setting a background color & image and modify the border, title and text colors.

In the content section you can replace the existing copyright information with yours or use any of the shortcodes included in the Ignition Framework.

Utilities

Lightbox

The theme offers a lightbox for your images which is by default disabled to avoid conflicts with third party plugins which offer lightboxes. If you want to use it you can enable it under Customize > Utilities > Lightbox.

Weather

You can choose to show the weather for a chosen location using the weather shortcode anywhere inside your installation. First you will need to set it up by providing an API key and location under Customize > Utilities > Weather.

Block editor Dark Mode

Some themes have dark color schemes which are reflected in the block editor, this can make working with certain blocks a bit harder. Enabling the editor dark mode using the provided checkbox will apply certain styles to the editor in order to improve the content creation experience.

For more information check out this knowledge base article about available customization options.

Custom post types

Create a new Service

Navigate to Services > Add New. Then under the Service tab start adding the basic item attributes. These are:

  • Summary: Control the location and appearance of the sidebar. More info about these options can be found here.
  • Categories: Set a category for the item which will also serve as a filter on the post type’s listing pages.
  • Featured image: Will appear on all related listings and on the item’s single page.
  • Excerpt: Add a manual excerpt that will appear on post listings and on the page title section as a subtitle (if applicable).
  • Page Title image: Set a custom post title background image for the item. Leave blank if you want to keep the default settings configured earlier.
  • Page Settings: Here you can fine tune the item’s appearance. E.g. toggle the featured image, change header type, hide the page title/subtitle, breadcrumbs etc. All our demo services respect the Customizer options. More info about these options can be found here.

Create a Service sidebar navigation

Create a new menu under Customize > Menus, don’t set any location to it and add your service posts as menu items. If custom post types don’t appear when trying to add them to the menu you can enable them under Screen Options.

Under the Widgets panel in the Customizer add a Navigation menu widget in the Services sidebar and select the services menu you have just created for it.

Create a new Event

Navigate to Events > Add New. Then under the Event tab start adding the basic item attributes. These are:

  • Summary: Control the location and appearance of the sidebar. More info about these options can be found here.
  • Categories: Set a category for the item which will also serve as a filter on the post type’s listing pages.
  • Featured image: Will appear on all related listings and on the item’s single page.
  • Excerpt: Add a manual excerpt that will appear on post listings and on the page title section as a subtitle (if applicable).
  • Page Τitle image: Set a custom post title background image for the item. Leave blank if you want to keep the default settings configured earlier.
  • Page Settings: Here you can fine tune the item’s appearance. E.g. toggle the featured image, change header type, hide the page title/subtitle, breadcrumbs etc. Demo items inherit options from the Customizer. More info about these options can be found here.
  • Event Settings: Select your Event Date, time and Location.

Create a new Team Member

Navigate to Team > Add New. Then under the Team Member tab start adding the basic item attributes. These are:

  • Summary: Control the location and appearance of the sidebar. More info about these options can be found here.
  • Categories: Set a category for the item which will also serve as a filter on the post type’s listing pages.
  • Featured image: Will appear on all related listings and on the item’s single page.
  • Excerpt: Add a manual excerpt that will appear on post listings and on the page title section as a subtitle (if applicable).
  • Page Title image: Set a custom post title background image for the item. Leave blank if you want to keep the default settings configured earlier.
  • Page Settings: Here you can fine tune the item’s appearance. E.g. toggle the featured image, change header type, hide the page title/subtitle, breadcrumbs etc. Demo items inherit options from the Customizer. More info about these options can be found here.

Setting up the pages

NOTE: All blocks used in the construction of the pages below are provided by the GutenBee plugin unless mentioned otherwise.

Homepage

Create a new page from Pages > Add New, then select from the right side under Summary the Full width boxed template. Then from Page Settings > Content area check the Remove top/bottom content padding. Under Page Settings > Header leave the Header Type as is and under Page Settings > Page Title set all options to hide. Now we are ready to start adding GutenBee blocks in order to re-create the demo’s homepage layout.



The homepage’s hero section consists of a GutenBee container block with the Theme Grid option enabled full alignment, 740px height, bottom content alignment and a background image set under Block Appearance. It contains two columns. The left column contains an Image, a Heading, a Paragraph and a Button block. The right column is intentionally left empty.



The testimonial section below the homepage hero consists of a container block with the Theme Grid option enabled and its alignment set to full. Inside it we find a single column containing a Paragraph, a Heading, a Core Spacer and a Testimonial block.



Next up is the services presentation section. This consists of a container block with full alignment, a single column and the Theme Grid option enabled, inside we find a single column, with a Paragraph, a Heading, a Core Spacer and a Post Types block with the service post type selected displaying 4 items in 2 columns.

Following is a Container with full alignment, Theme Grid enabled, 740px height, bottom content alignment and a background image set under Block Appearance. Inside are two columns. The left is blank and the right contains a Heading, a Paragraph and a Button.

The values section consists of a Container with full alignment, Theme Grid enabled and a background color set under Block Appearance. Inside we have a single column which contains a Paragraph, a Heading, a Core Spacer and another Container. The inner container has a three column layout with each column containing two Icon Boxes.

The team section has the same block composition as the services section above. The Post Types block here displays 3 team members in a 3 column layout.



Closing up the homepage is a Container with full alignment, Theme Grid enabled and a background color set under Block Appearance. Inside we have a single column with a Paragraph, a Heading, a Core Spacer and a Slideshow block with the logos of the partners.

Creating Team Member and Service listing pages

Create a new page under Pages > Add New. Set the page template under Summary section to Full width boxed. Fill in a custom Excerpt which will appear as the page’s custom subtitle, then select a background image from Page Settings > Page Title > Colors section, and select to show the page title over it from Page Settings > Page Title > Layout section by selecting Show Page Title with Background.

The grids are created using the GutenBee Post Types block. Start by adding the block in the editor, select one of the available Styles (default and overlay are available on Medi) and proceed to set up your post query. From the post type dropdown pick the post type you want to display, the number of post items, columns, pagination, toggle category filters (post items need to be in categories, if enabled ignores pagination) and more. Once done you can add more blocks to the page if you want, or publish the page.

About page

This is a page with the Full width boxed layout applied to it. It has a custom excerpt, a Page Title background image and the Show Page Title with Background option enabled under the Page Settings meta box.

The about page starts with three alternating image/content sections. Each consists of a Container block with two columns. One column hosts the content in the form of a Core Heading, and two Paragraph blocks while the other hosts the Image block. The content and the image swap positions in each row.

The values section closing the about page is identical to the values section of the front page.

FAQ Page

This is a page with the Full width boxed layout applied to it. It has a custom excerpt, a Page Title background image and the Show Page Title with Background option enabled under the Page Settings meta box.

The content of the page consists of three identical blocks of the Container block with a single column, containing a Heading and an Accordion block.

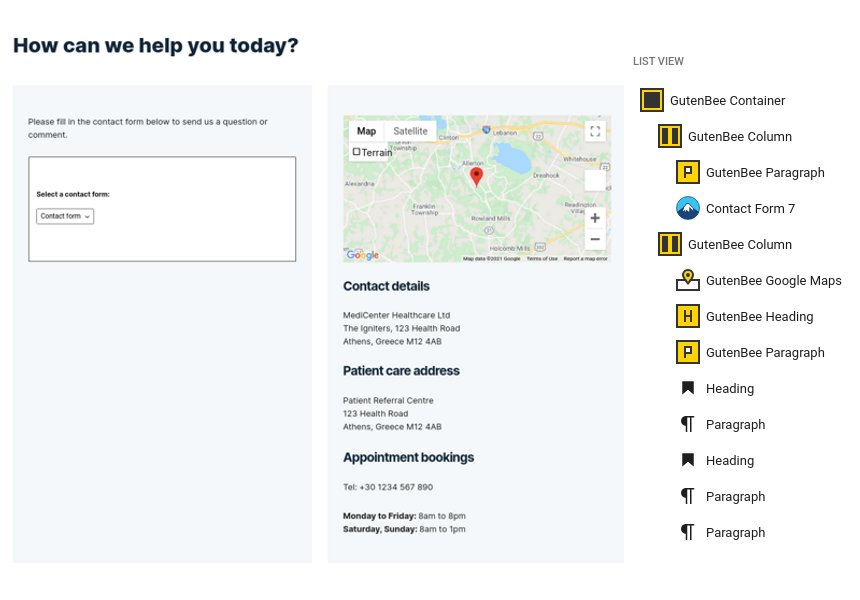

Contact us page

This will serve as your contact page, with a contact form, map and some details for your business. We are using Contact Form 7 plugin to display a contact form, but you can use any plugin you wish.

Create a new page from Pages > Add New. Under Summary set the template to Full width boxed.

The page consists of a Container block with two columns. The left column houses a Paragraph and the Contact Form 7 block, however you can use any other form provided by a plugin of your choosing. The right column contains a Google Maps block and a few Heading/Paragraph block sets with the business’ info.

Common features

This section offers information on features common on all Ignition Framework based themes.

Shortcodes

The Ignition Framework offers a multitude of custom shortcodes these are:

Custom menu: [ignition-custom-menu name="your menu name"]

Site search: [ignition-site-search]

Date: [ignition-date]

Weather: [ignition-current-weather id="your-location-id(optional)"]

Minicart button: [ignition-minicart-button]

Language switcher: [ignition-language-switcher]

Icon link: [ignition-icon-link]

Instagram Feed: [ignition-instagram-feed]

WooCommerce search: [ignition-wc-search]

For more information have a look at this knowledge base article about shortcodes and their usage.

Page options

All themes offer six different templates which modify the location and appearance of the sidebar and the main content’s width.

Additionally pages have a common set of options which allow you to customize the appearance of the page title section, toggle breadcrumbs and more.

All settings are inherited from Customizer. So you can actually set some global settings and if you wish change certain pages to have different behavior.

Read the following article for a detailed explanation of the available templates and their options.

WooCommerce

Ignition Framework based themes are compatible with WooCommerce giving you the ability to create awesome online stores which perfectly match the appearance of the rest of your site.

WooCommerce is an optional plugin. You don’t need to install it if you are not looking to build an online store.

After activating WooCommerce it will create and set some default pages. These will serve as your Shop, Cart, Checkout and My Account pages.

The framework offers various customization options both for the main product listing page under Customize > WooCommerce > Product Catalog and for single products under Customize > WooCommerce > Single Products.

Learn more about the WooCommerce integration and the options offered here.

Global Sections

With the Global Sections custom post type included in all Ignition Framework based themes users can create content which can be easily reused in more than 15 key theme locations. For example users can create a newsletter subscription call to action box and immediately display it above the footer on all (or some) posts and pages, or create a banner ad an easily add it between posts in post listings etc.

Check out our knowledge base article for more information about Global Sections.

Blog page

This is you main blog page. You can create a new page and set it as your posts page under Customize > Homepage Settings. You can customize it under Customize > Blog from the Archives section.

Widget areas

The theme provides special widget areas for your posts listings, pages and shop. You can use a plugin/module like Jetpack’s widget visibility to hide or show widgets for certain pages, posts or products.

Support

If you need help during the initial installation and setup of this theme feel free to get in touch and we will get back to you within 24 hours to help.
